Easy 1-2-3 A-Frame Swing Set Bracket Kit (Pair)

Hardware

Easy 1-2-3 A-Frame Swing Set Bracket Kit (Pair)

• Description

  Our #1 Selling Swing Set Accessory!

  Get our #1 selling swing set accessory when you order the Easy 1-2-3 A-Frame Bracket Kit from Eastern Jungle Gym. This A-Frame swing set bracket is constructed of heavy-duty steel and finished in green powder coating. Each swing set bracket is designed for two 4”x4” legs and one 4”x6” swing beam. That means there is no need to cut or measure- simply slide the wood into the brackets and screw in the included lag bolts for convenient and safe assembly. At Eastern Jungle Gym, we promise that all our A-Frame swing set parts are safe and durable. No need to worry about your child when they are playing on one of our swings or playsets.

  Learn more about this amazing Easy 1-2-3 A-Frame swing set bracket pair below.

  Please Read Before Purchasing: The Easy 1-2-3 A-Frame Bracket Pair is designed to fit a kiln-dried 4”x6” top beam with true measurements of 3-1/2” x 5-1/2”. The bracket opening measures 3-5/8” x 5-5/8”. We suggest measuring your lumber before purchasing this A-Frame swing set bracket to ensure that it meets those specifications. Lumber is not included with your purchase.

  WARNING! Do not attempt to force the wood into the bracket. The lumber should slide into the swing set bracket easily with a snug fit. If your boards are too large, it is recommended that the wood be planed down to produce a comfortable fit. This will ensure ultimate safety for your children.

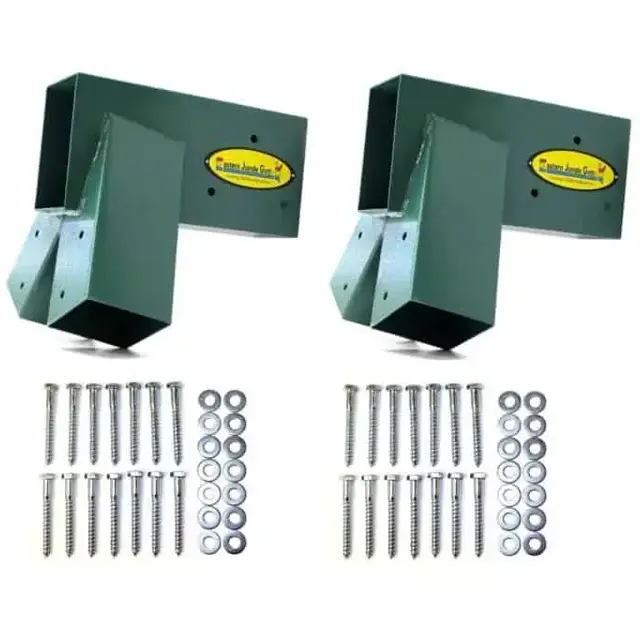

  This Bracket Kit includes TWO swing set brackets. ALL Bracket Hardware is INCLUDED!

• Features

  What helps to set our Easy 1-2-3 A-Frame swing set bracket apart from our competitors? Check out all the amazing features this product offers below:

  • Made of steel Each bracket is pre-drilled with 14 holes for easy and accurate assembly
  • Green powder coated
  • Includes 2 A-Frame swing set brackets and two sets of A-Frame bracket hardware
  • All hardware needed to construct a DIY A-Frame swing set

  • One-piece bracket design with welded seams add strength and durability
  • Features our signature yellow tag to ensure authenticity
  • Easy to install
  • Affordable price
  • Fast shipping

  As you can see, no one makes A-Frame swing set parts like Eastern Jungle Gym. Shop this product today and get your DIY swing set up and running in no time!

• Installation

• Specifications

  Eastern Jungle Gym’s A-Frame Swing Set Bracket Kit makes building a wooden swing set as easy as 1, 2, 3!

  Construct a freestanding backyard swing set with our Easy 1-2-3 A-Frame Bracket Kit. Our brackets are designed to fit kiln-dried lumber. We recommend using two 4″ x 4″ legs with a true measurement of 3-1/2″ x 3-1/2″ and one 4″ x 6″ top beam with a true measurement of 3-1/2″ x 5-1/2″. The bracket openings measures 3-5/8″ x 3-5/8″ and 3-5/8″ x 5-5/8″, respectively. We strongly suggest measuring your lumber before purchasing this swing set kit to ensure it meets those specifications.

  What do I need to build my A-Frame Swing Set?

  We are your experts in backyard play can help provide you with everything you need to build your DIY playset! Please see below for our recommended part list; we recommend it, because we use it!

  • 2 – Easy 1-2-3 A-Frame Swing Set Brackets with Hardware (this kit!)
  • 1 – 114″ 4×6 top beam, kiln-dried with a true measurement of 3-1/2″ x 5-1/2″

  • 4 – 96″ 4×4 side support legs, kiln-dried with a true measurement of 3-1/2″ x 3-1/2″
  • Up to 3 Outdoor Swing Set Swings
  • Swing hangers and Mounting Hardware for Swings
  • 4 – Ground Anchors

  A swing set constructed with the recommendations above will have the following completed dimensions: 12’L x 8’D x 7’8″H

  We recommend anchoring the swing set into the ground and not exceeding 8-foot side support legs. Our Easy 1-2-3 A-Frame Brackets are designed for residential use only.

  Please see diagram below for Easy 1-2-3 A-Frame Bracket angles:

  • The angle between the two legs is approximately 45 degrees

  • The angle between the top beam and the side support leg is approximately 105 degrees

  WARNING! Do not attempt to force the wood into the bracket. The lumber should slide into the bracket easily with a snug fit. If your boards are too large it is recommended that the wood be planned down to produce a comfortable fit.
